Import a ServiceNav Box into Microsoft Azure

On the page

Do you need help?

Context: use this procedure to deploy a monitoring appliance for Microsoft Azure, and integrate it into an Azure subnet.

Recovery of the VM on our site ftp://software.servicenav.io (contact support to get the login details)

In the VSM-VSB folder take the image :

  • SNM_MASTER_AZURE_2018_03_16_V3.13.1.vhd.zip if your platform is in version < 4.0
  • SNB_MASTER_AZURE_2019_03_28_V4.0.0.vhd.zip if your platform is in version >=4.0

Deploy the image in Azure

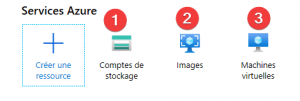

Connect to the AZURE portal and follow steps 1 to 3

1) Since storage account

Select an account and then Navigate the menu Blob Service / Containerwhich will be the storage location for the VHD.

Upload the file to the Container (Blob)

click on Upload or Load

and select the VHD file.

2) Creating the image

  • Go to the image menu and click on the button Add

Click on Create.

3) Creating the VM from the image

Click on Virtual Machine and then on the + add

Select the previously created image.

bulb iconAttention, in the "Instance details > Size" section, make sure to select a non-modular size, such as Dv4 or Dsv4 Series. Credit VMs such as the scalable B-Series can have high CPU load issues.

The password to be given for the created user is useless, it will have to be changed later.

Disk Options

Networking

The public IP address is created and associated with the VM automatically.

Management

Check the default choices below:

Advanced

Do not change anything.

Tags

Do not change anything.

Validate the last step after verification, then click on Create.

Finalize the configuration of the created VM

TCP port opening

Do this only if the virtual machine is used to collect data from ServiceNav agents. See Coservit support for more details.

On the supervision box launch the installation script without changing the IP address. Start at the token step of the procedures below.

Once a VM is put in supervision, if it does not ping/timeout snmp, check that the Box and the VM are on the same resource group/address, in the global view.

Perform virtual network peering if the VNs are different.

Commissioning of a ServiceNav Box

Follow the procedure below from section 2:

License mode: https://coservit.com/servicenav/fr/documentation/mise-en-service-dune-box-servicenav/

SaaS mode : https://coservit.com/servicenav/fr/documentation/mise-en-service-dune-box-saas-servicenav/
